Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
1 / 5
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips
Constant Voltage and Constant Current Design Options Neon LED Light Strips

Constant Voltage and Constant Current Design Options Neon LED Light Strips

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
RCY8C0FA-1
Emitting Color
Red, Green, Blue, White
Voltage
12V
IP Rating
IP65
LED Qty
120PCS/M
LED Light Source
2835 SMD
Package
5m/Roll
Warranty
3 Years
PCB Width
8mm
Certificates
UL, TUV-CE, RoHS
Production Capacity
50,000m/Day
HS Code
9405409000
P

Product Description

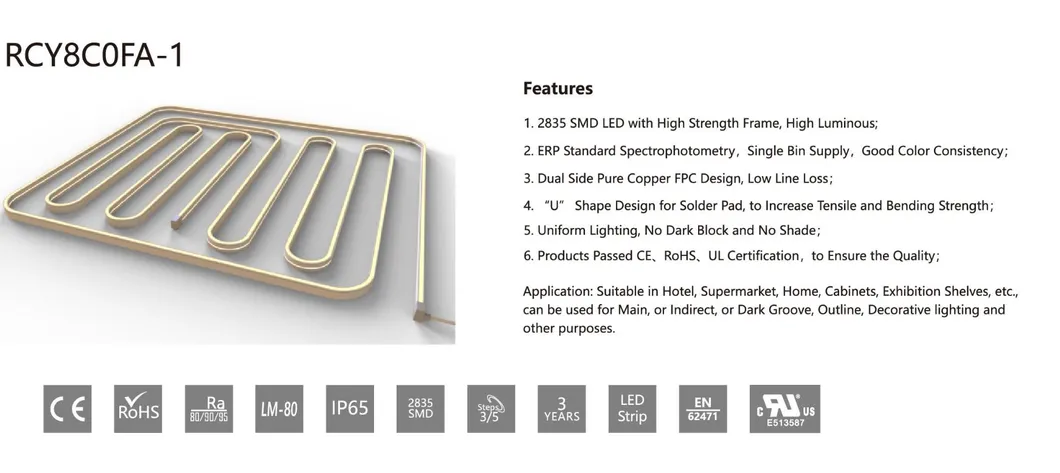

Neon LED Light Strips Design

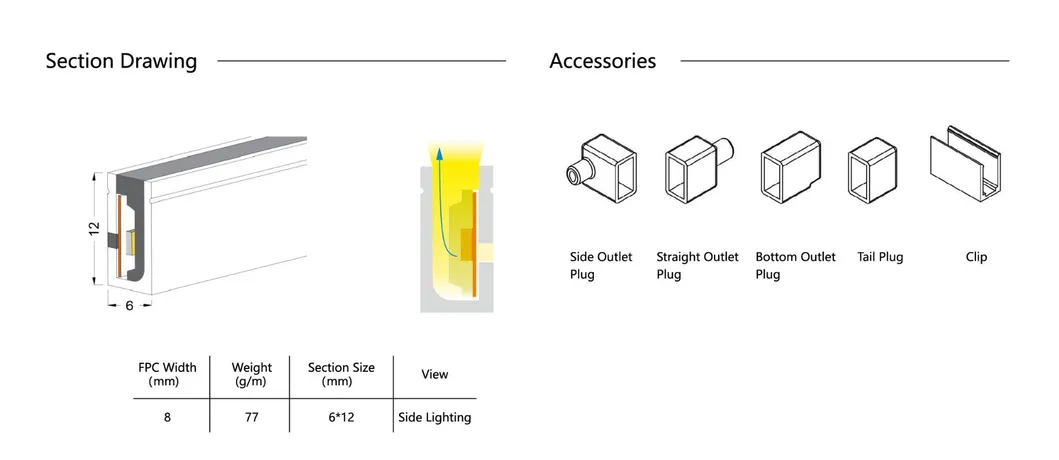

Constant Voltage Design Options
S

Product Parameters

Product No. LED Color CRI / SDCM LED Qty(pcs/m) Voltage(VDC) Power(W/m) CCT(k) / WL(nm) Luminous(LM/m) Efficiency(Lm/W)
RCY8C0FA-1 White >=80 / <=5 120 12 8 1800-12000 320-400 40-50
Red - 620-625 96 12
Green - 525-530 288 36
Blue - 465-470 64 8
C

Certifications

Certification 1

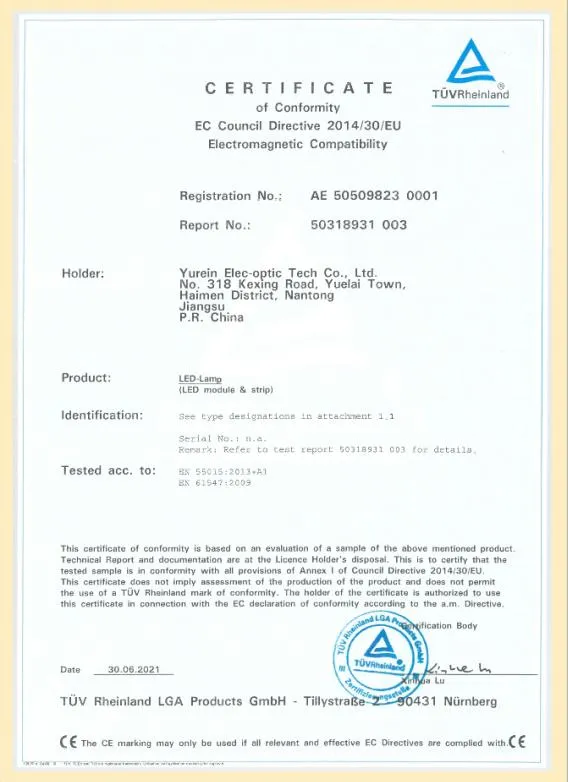

Certification 2

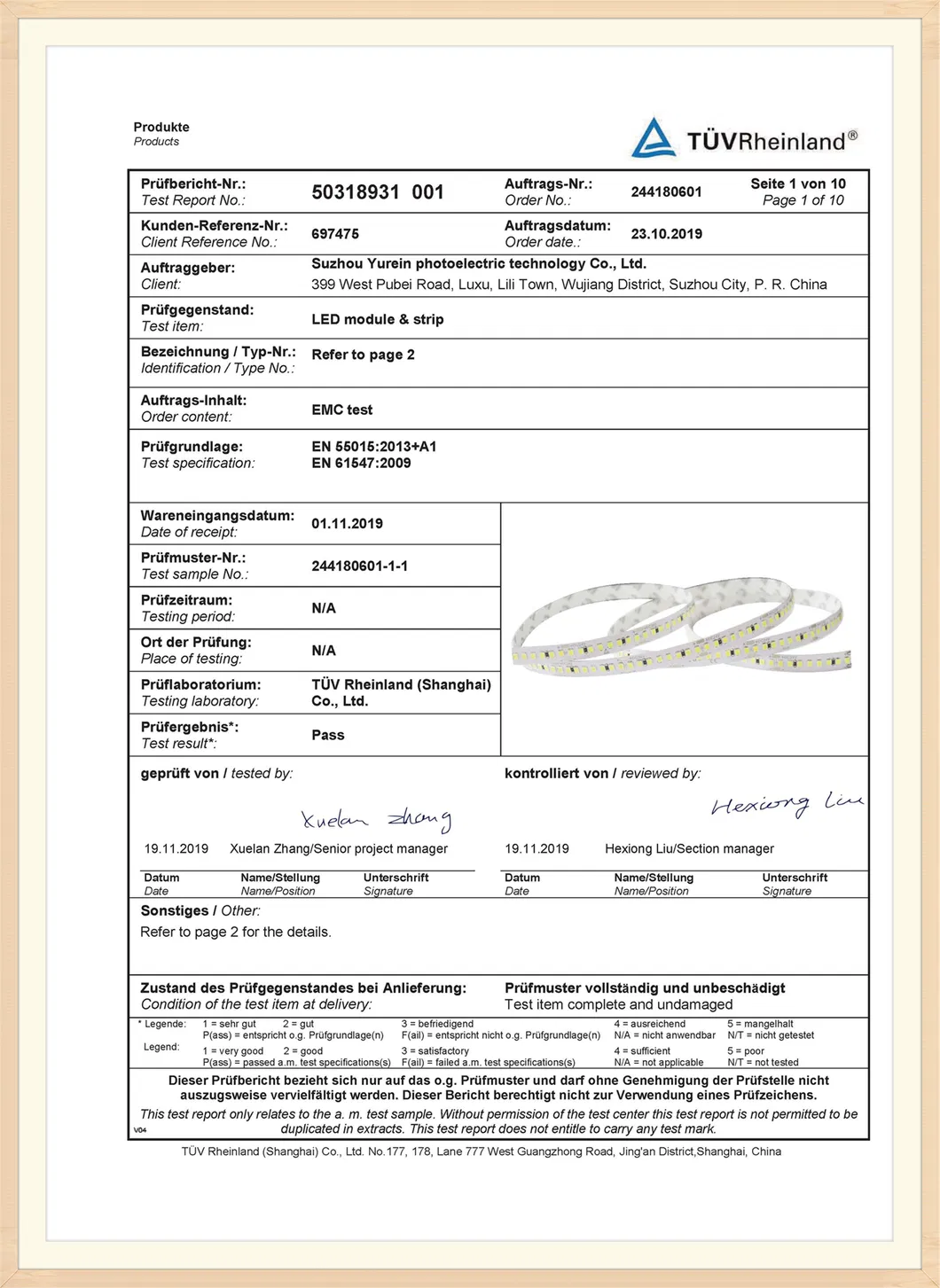

Certification 3

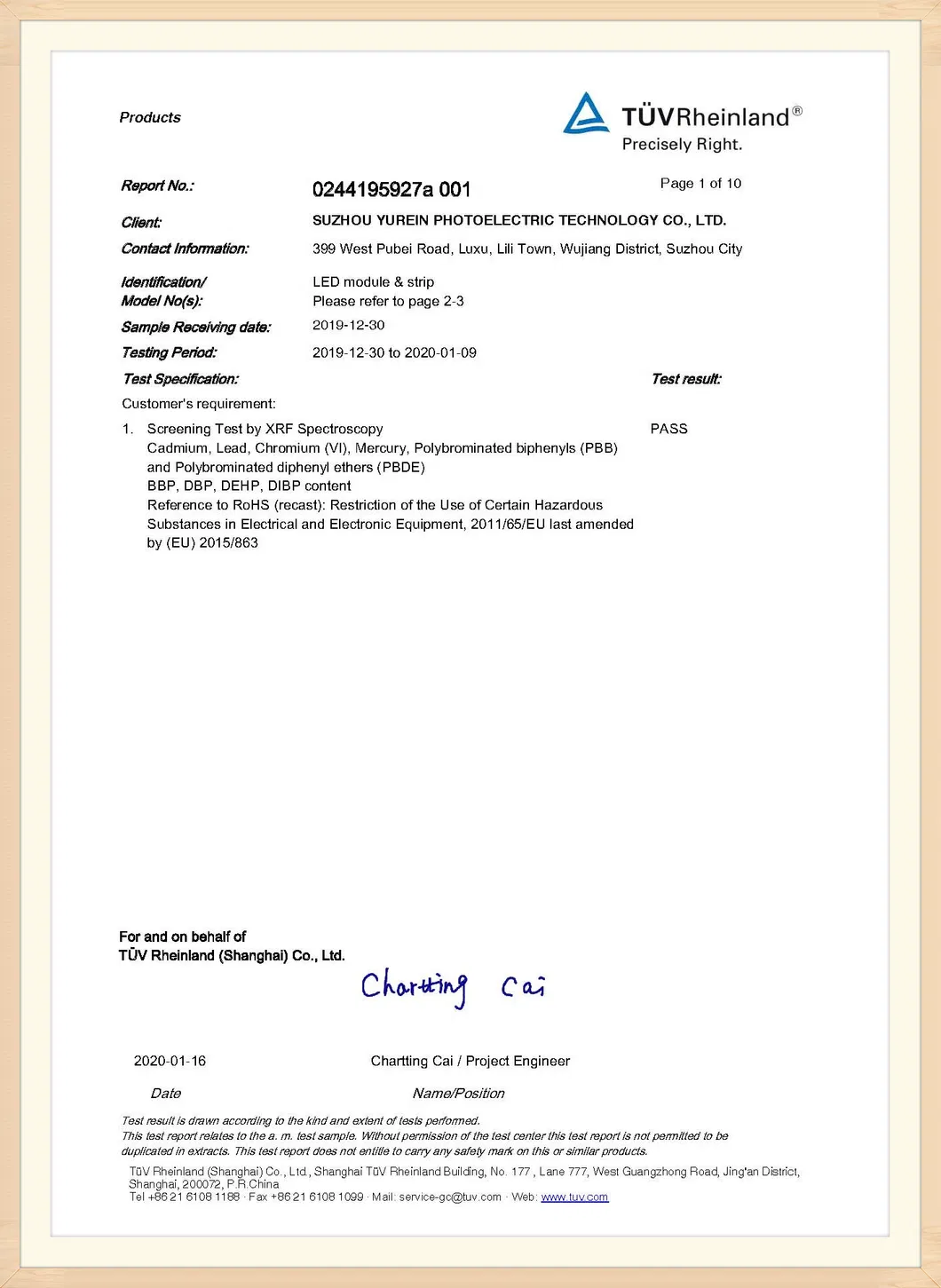

Certification 4

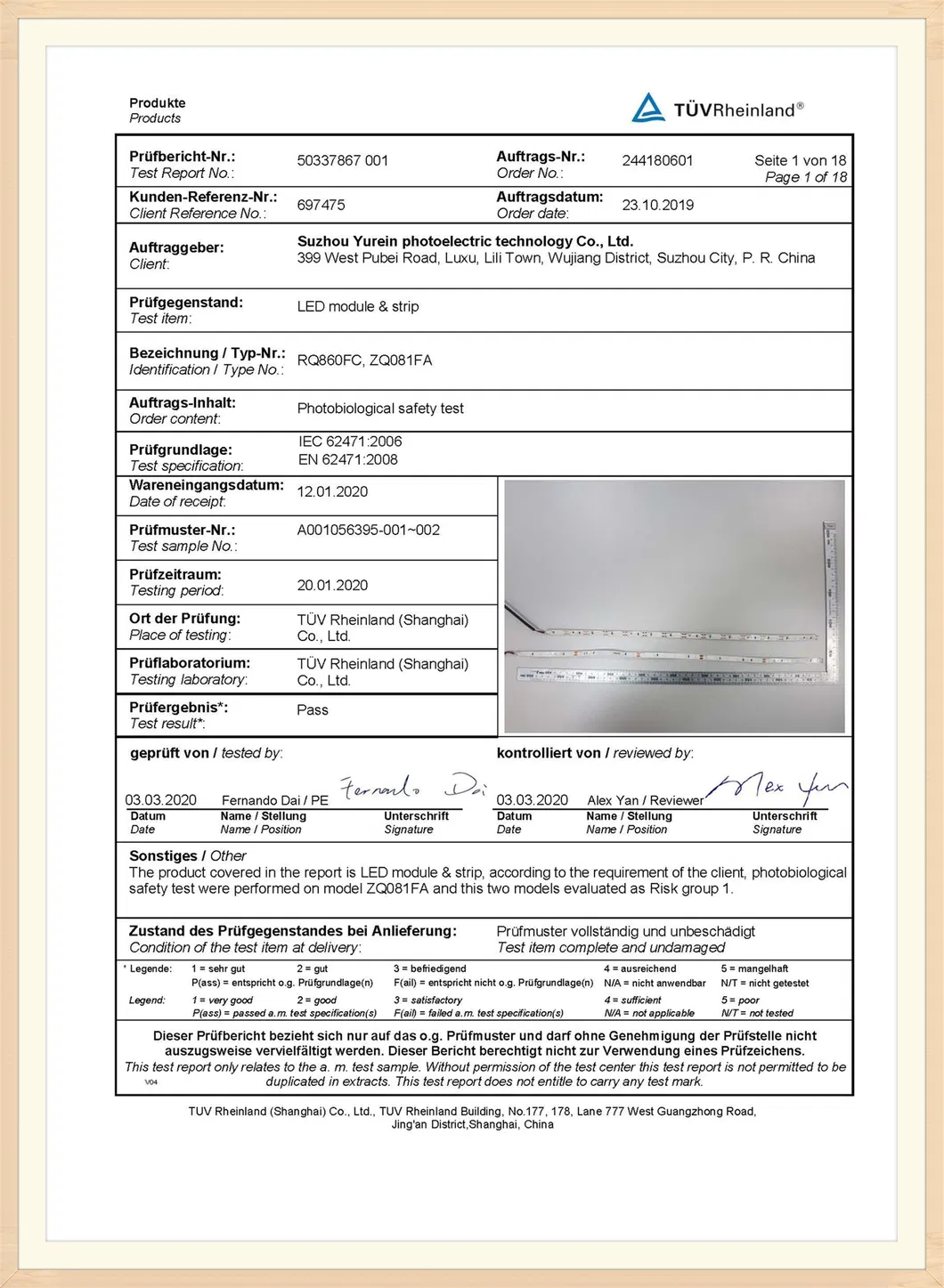

Certification 5

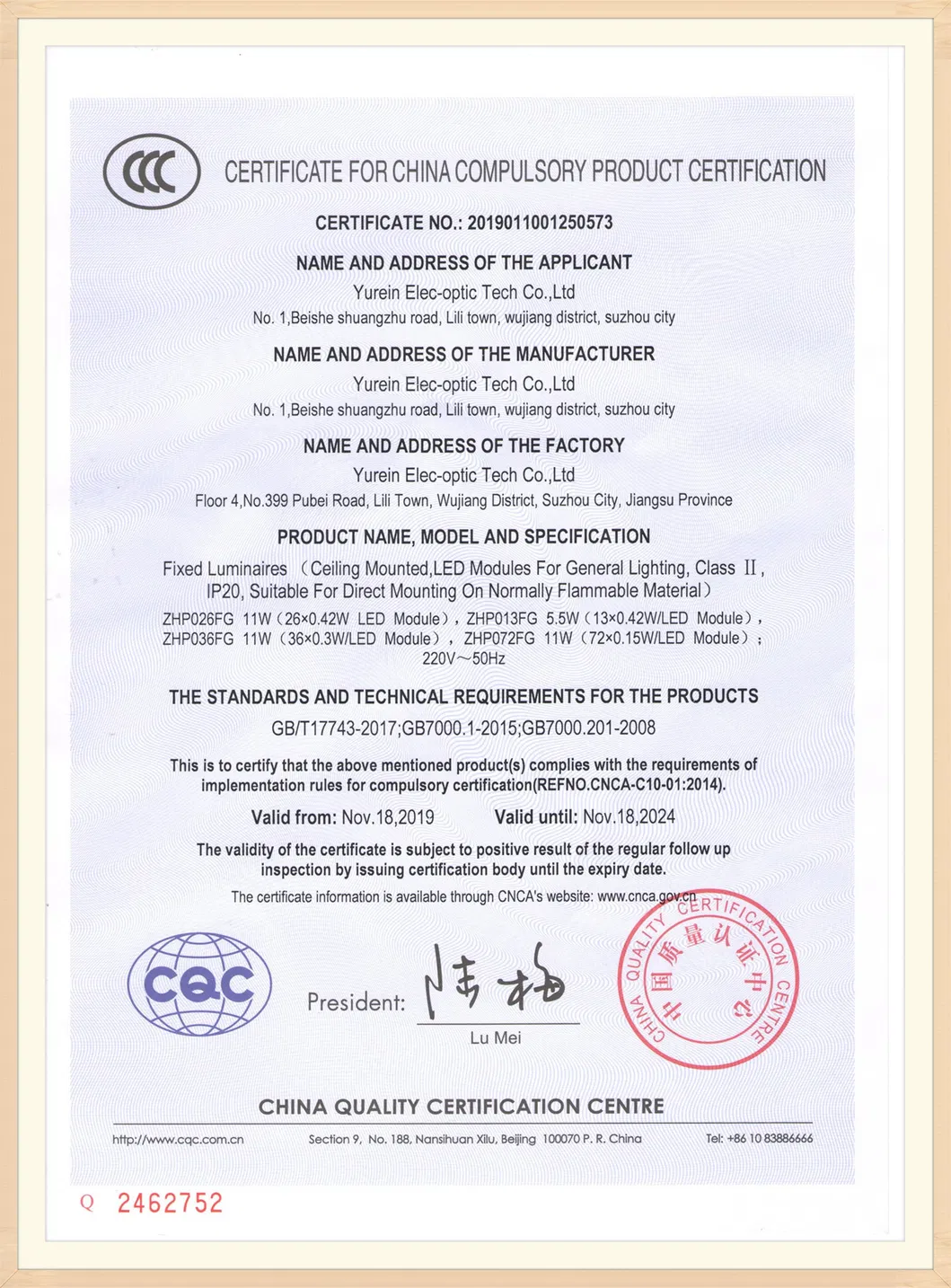

Certification 6
F

Factory Display

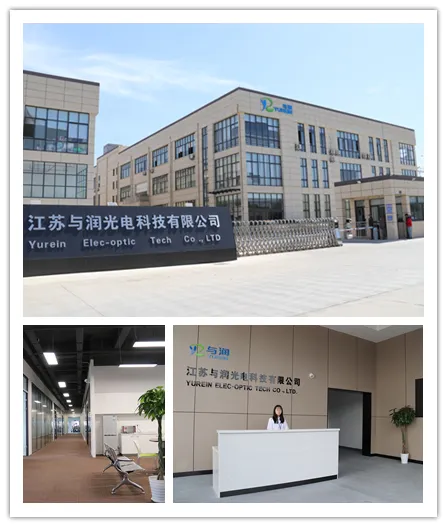

Factory Area 1

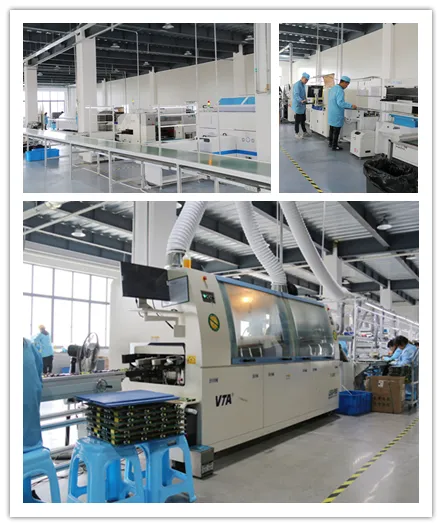

Factory Area 2

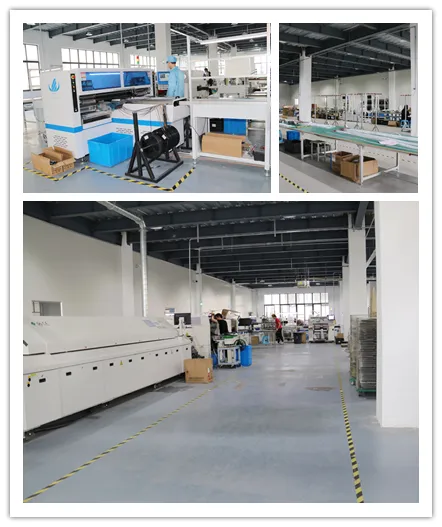

Factory Area 3

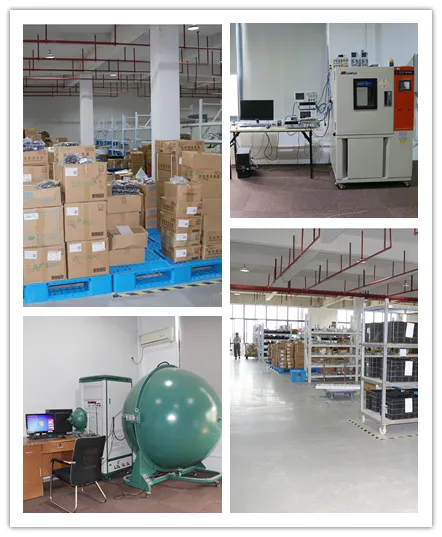

Factory Area 4
?

Frequently Asked Questions

What is the IP rating of this LED strip, and where can it be used?
The LED strip has an IP65 rating, making it dust-tight and protected against water jets, suitable for both indoor and semi-outdoor lighting projects.
What are the power requirements for the RCY8C0FA-1 model?
This model operates on a 12V DC voltage and has a power consumption of 8W per meter.
How many LEDs are there per meter?
The strip features a high density of 120 LEDs per meter using 2835 SMD light sources for uniform illumination.
What colors are available for this specific LED strip?
It is available in White (1800-12000K), Red (620-625nm), Green (525-530nm), and Blue (465-470nm).
What is the warranty period and certification status?
The product comes with a 3-year warranty and is fully certified by UL, TUV-CE, and RoHS for quality assurance.
What is the standard packaging and PCB width?
The standard package is 5 meters per roll, and the PCB width is 8mm, designed for slim installations.
