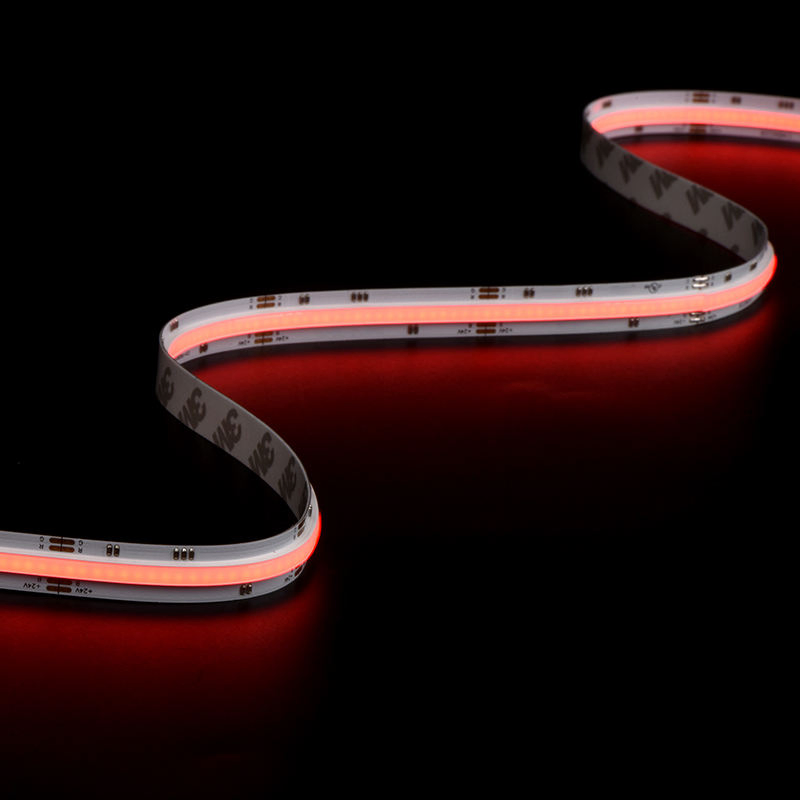

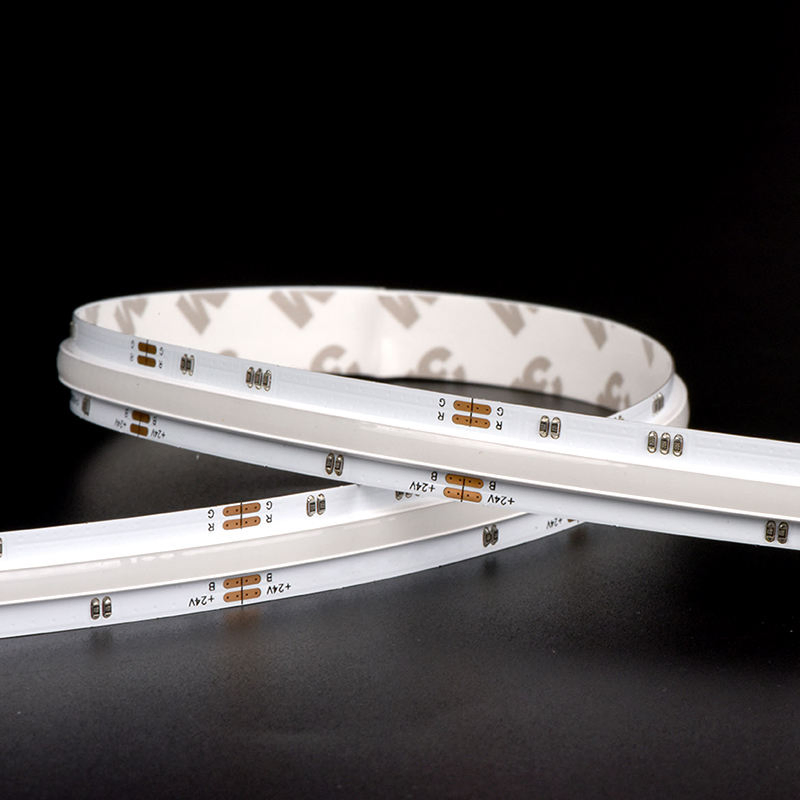

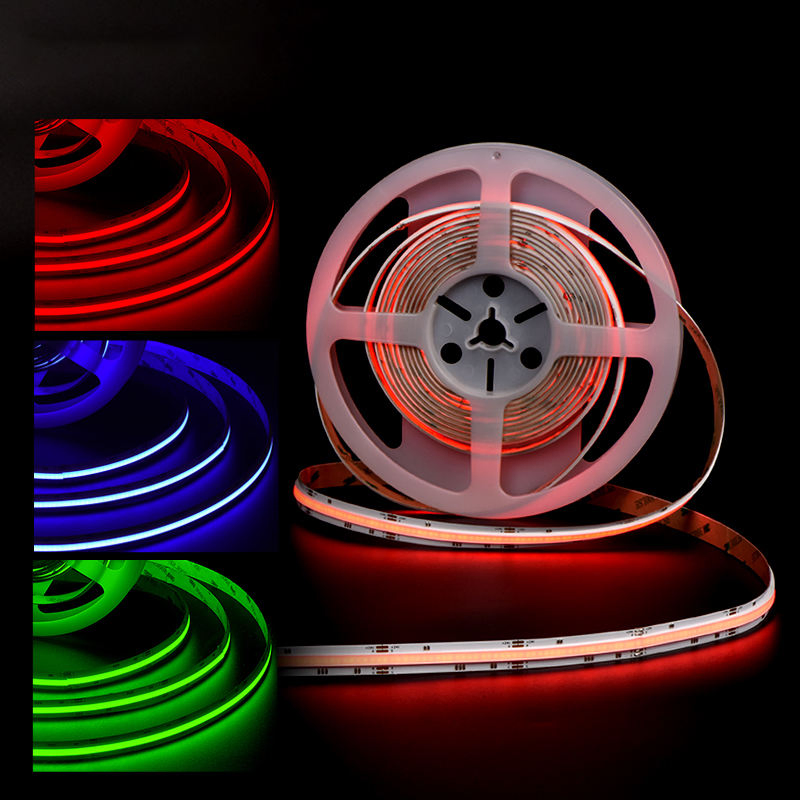

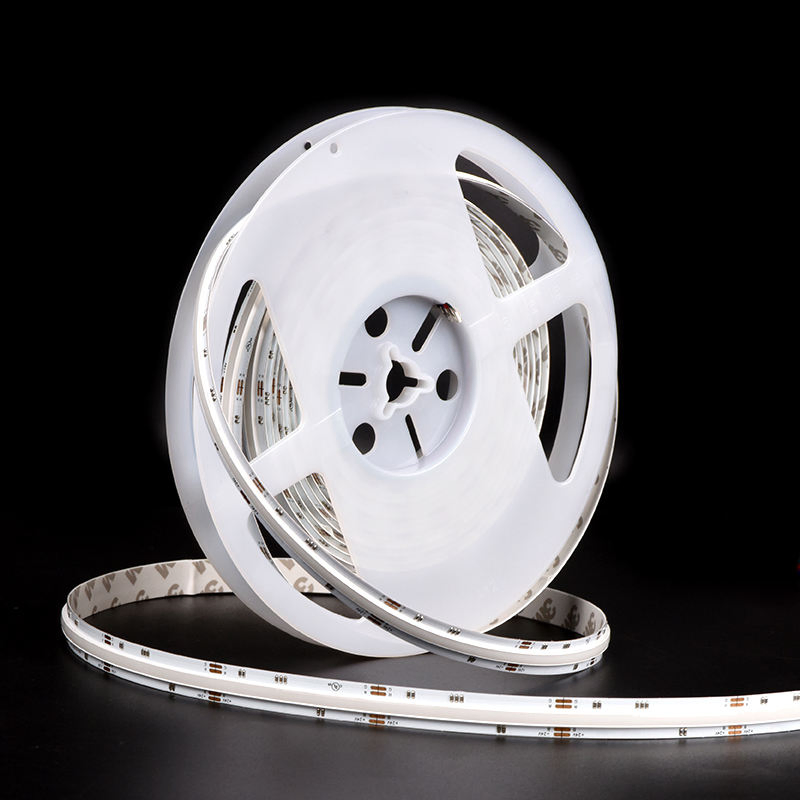

New Release DOT-Free RGB High Density 1134chips/M LED Cobflex Strip Light

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
LT-RGBCOBN1134-XX90-24
Emitting Color
RGB
Voltage
DC 24V
IP Rating
IP20/IP65/IP67/IP68
Control Mode
APP Control, Remote Control
Application
Under Cabinet Lighting
Material
Copper PCB
Warranty
3-Year
Efficiency
50 Lm/W
LED Quantity
1134PCS (378*3) per meter
P

Product Description

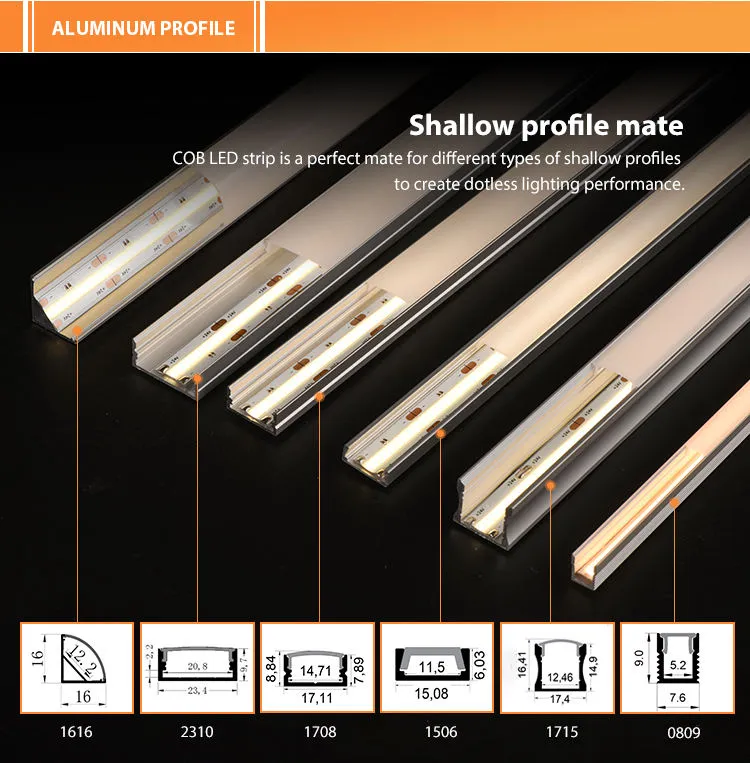

The RGB COB Flex Strip is engineered using advanced flip-chip technology. By mounting high-density LED chips directly onto the FPC, it eliminates visible dots, creating a seamless, uniform lighting effect. This design is ideal for shallow profiles and premium under-cabinet lighting where consistent color and high efficacy are required.

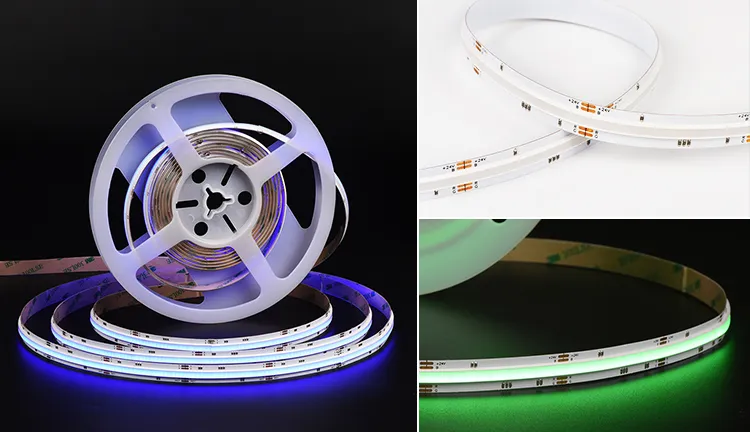

RGB COB LED Strip
✓ COB RGB 1134LED/m High Density
✓ 0-10V, DALI, PWM Dimmable Support
✓ 3-5 Years Professional Warranty
COB Flex Technical Display
T

Technical Data

Electrical & Mechanical Data
Nominal Voltage24V DCVoltage Range23-25V DC
LED TypeCOBDimensionsL5000*W12*H2.2mm
LED QTY/m1134pcsPCB Dimension10mm x 2oz
Beam Angle120°Cut Points55.6mm
Bend RadiusR < 50mmInstallation3M 300LSE Adhesive
Parameter Combined RGB Red Green Blue
Power/m15W5W5W5W
Wavelength471.5nm620nm525nm455nm
Lumen/m495LM110LM325LM50LM
Efficacy33Lm/W22Lm/W65Lm/W10Lm/W
C

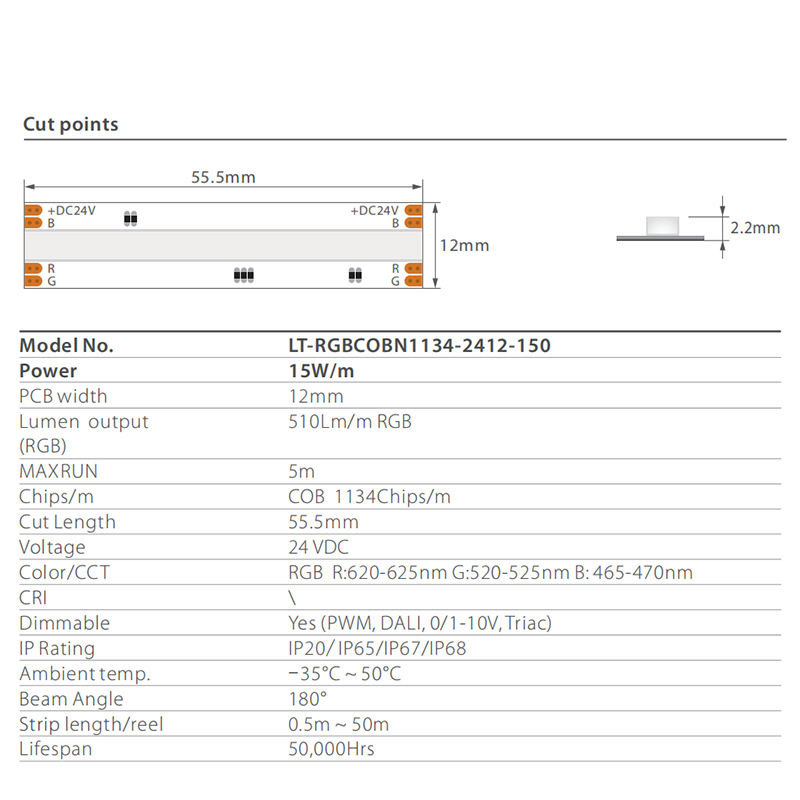

Cutting & Customization

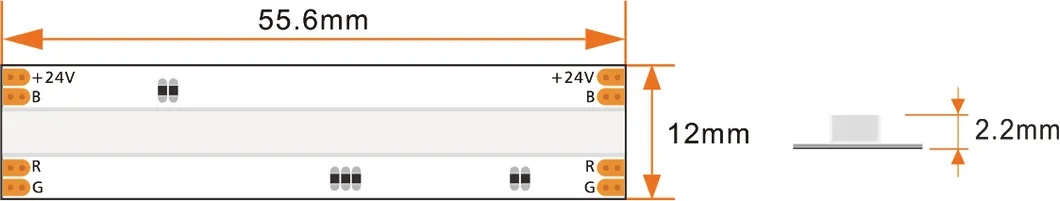

Cut Length Information
A

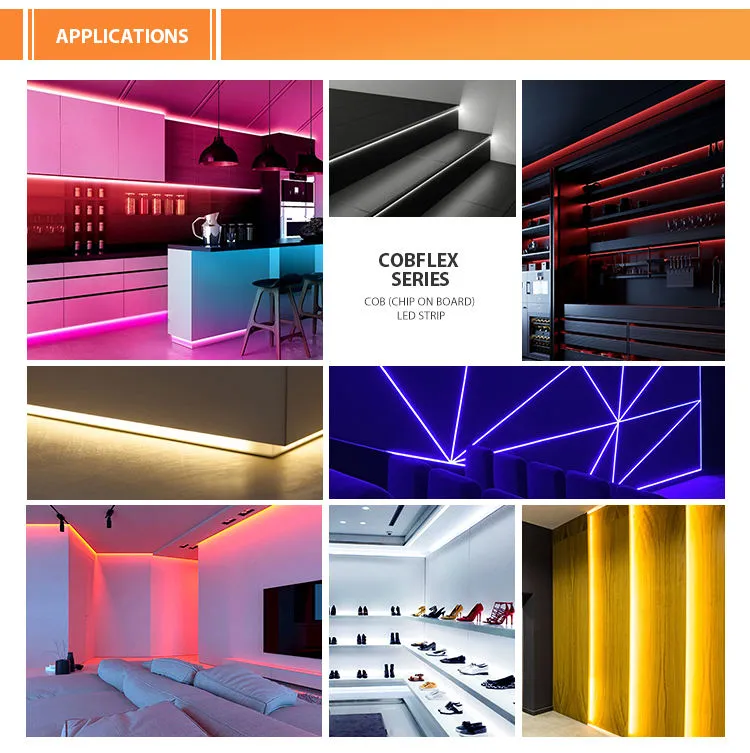

Applications & Quality

S

Packaging & Logistics

Packaging Details
QTY per Carton60pcs Carton Size40*40*23cm
G.W. per Reel0.18Kg G.W. per Carton11.56Kg
?

Frequently Asked Questions

Q1: What is the main advantage of the RGB COB LED strip compared to standard SMD strips?
The COB (Chip on Board) technology allows for much higher LED density (1134 chips/m), resulting in a "dot-free" continuous light line even without deep aluminum profiles.
Q2: Can these LED strips be dimmed?
Yes, they support multiple dimming protocols including PWM, 0-10V, and DALI, allowing for full control over brightness and color mixing.
Q3: How often can the strip be cut?
The strip features precise cut points every 55.6mm, allowing for easy customization to fit specific project lengths.
Q4: What is the lifespan and warranty of this product?
The product has a rated lifespan of 30,000 hours and comes with a 3-year standard warranty.
Q5: What are the available waterproof ratings?
We offer multiple options including IP20 (non-waterproof), IP65, IP67, and IP68 to suit indoor, damp, or fully submerged environments.
Q6: What are the standard payment and delivery terms?
We accept T/T, Western Union, and PayPal. Delivery is available via DHL, FedEx, UPS, air, or sea freight. Sample orders have no MOQ.
