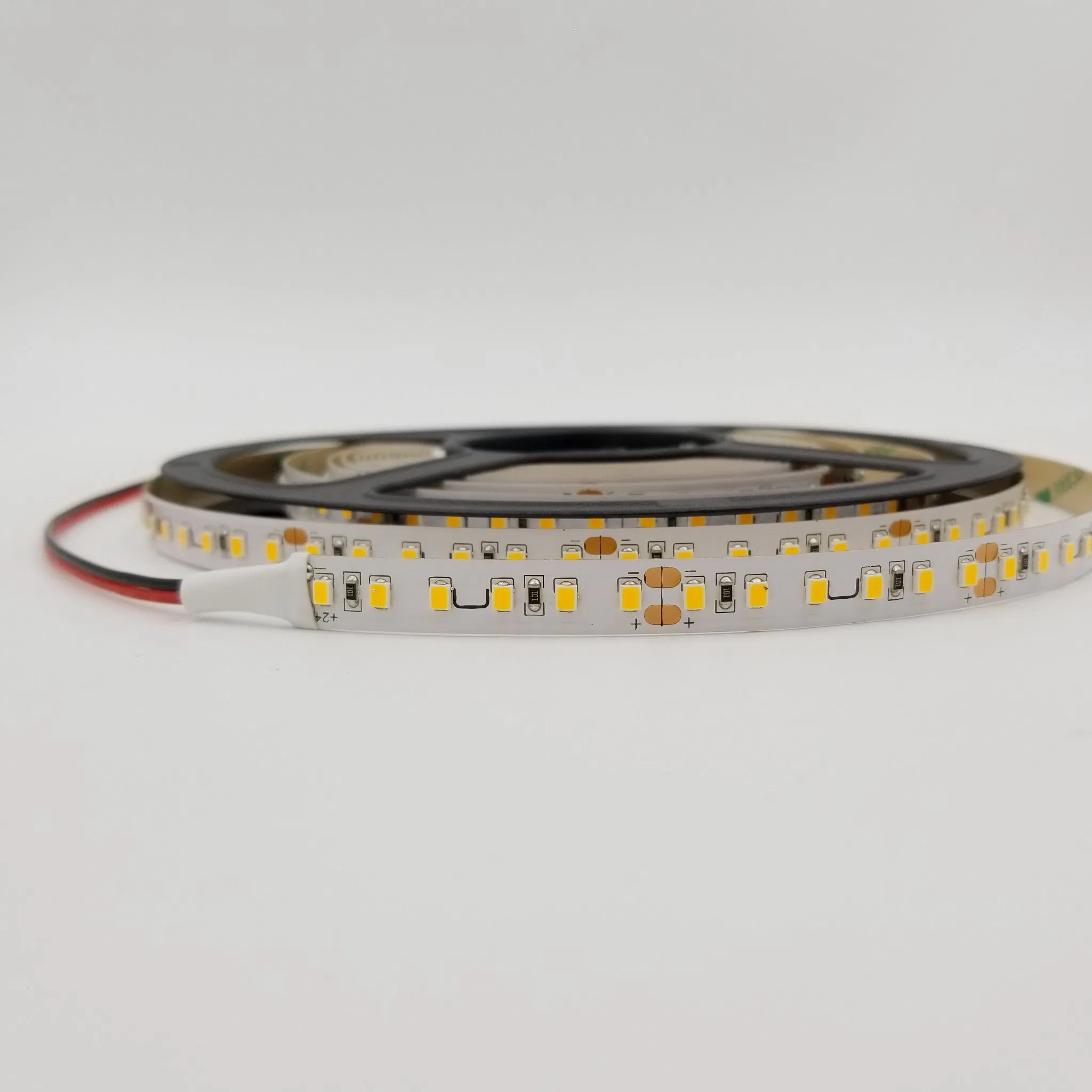

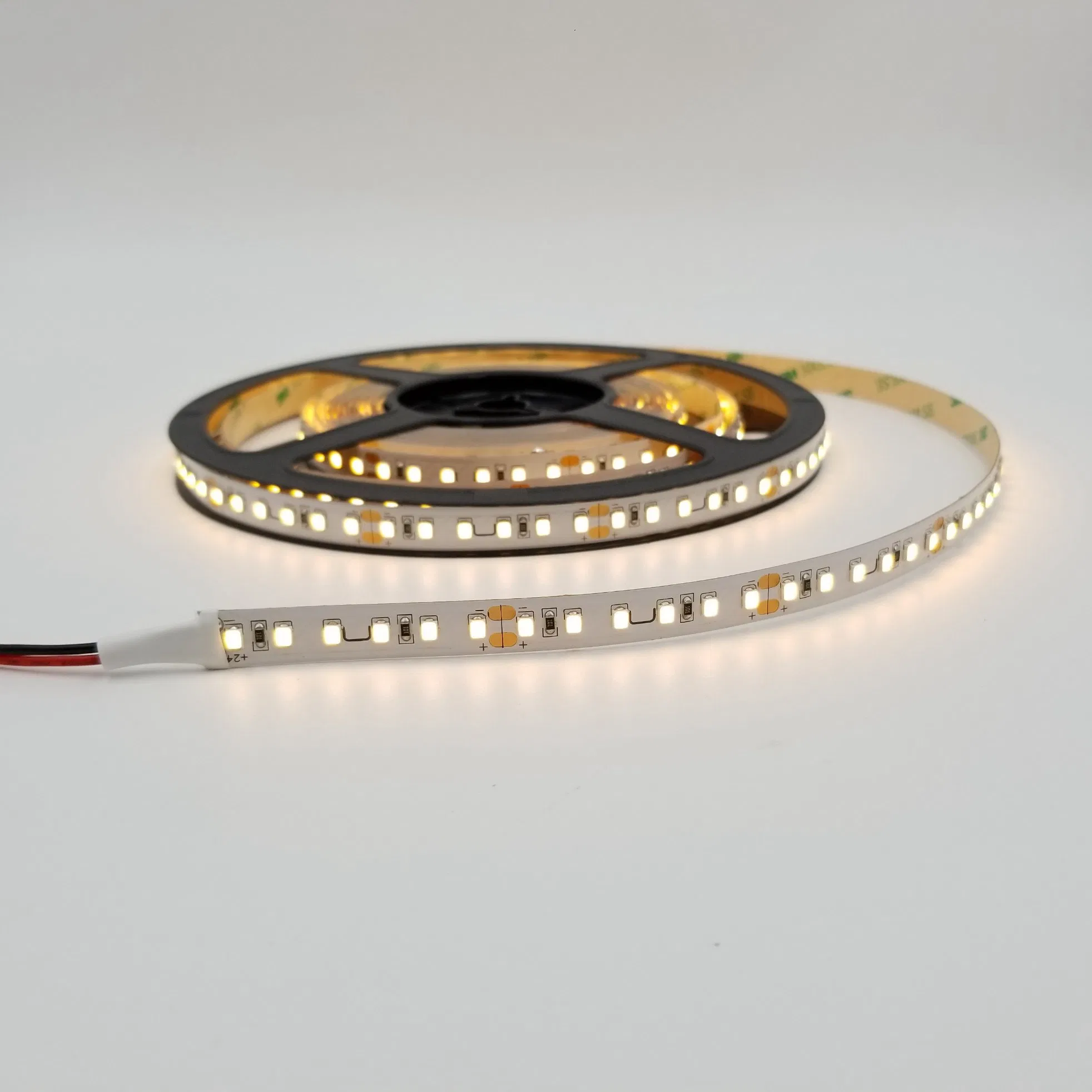

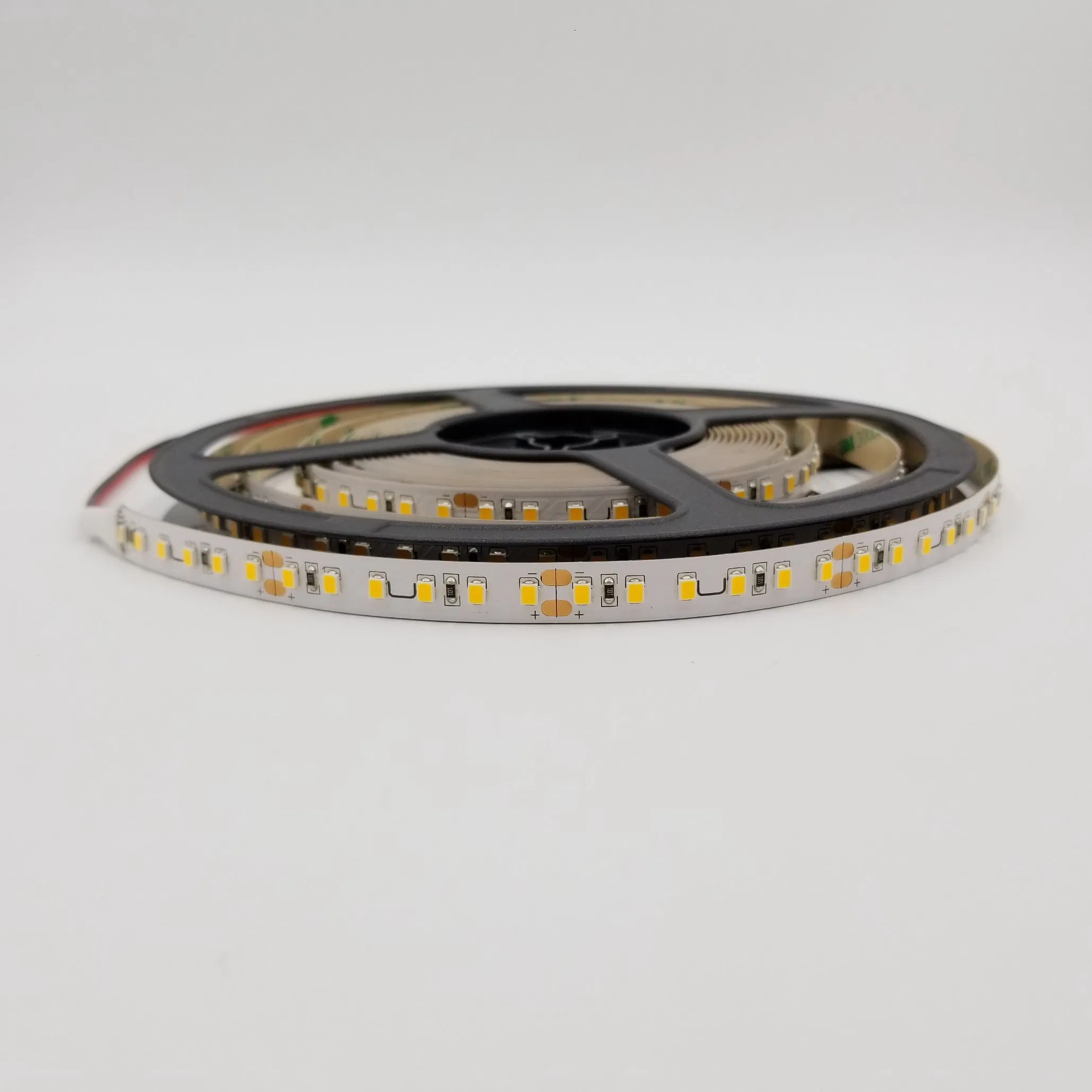

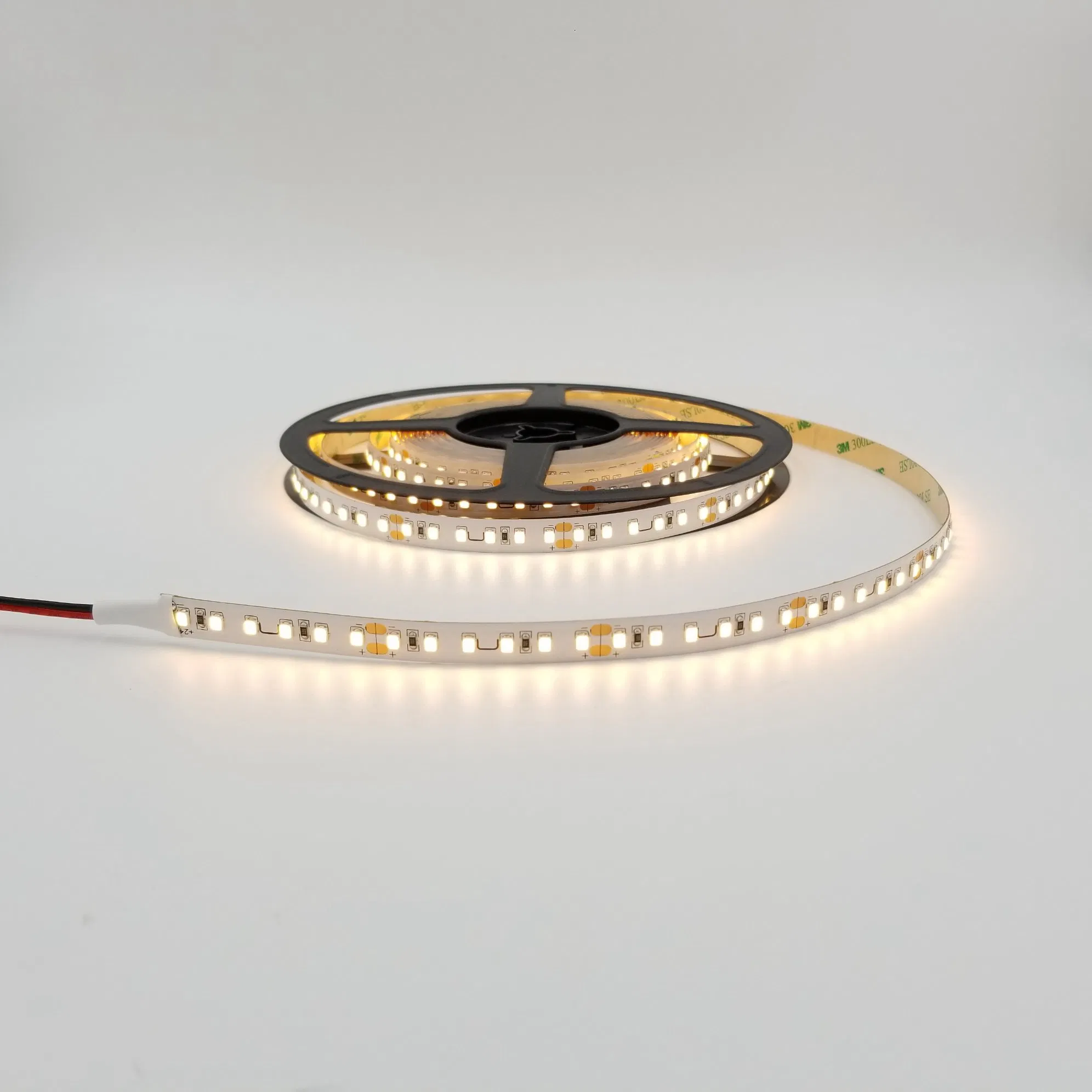

UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
1 / 5
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light
UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light

UL/Ce Approved Constant Current SMD2835 Flexible LED Strip Light

Customization: Available
Certification: SAA, FCC, CCC, RoHS, CE
Power: 21-30W
Send Inquiry

Product Description

Basic Specifications
Model NO.
ATA-XF28-120C
Emitting Color
White
Voltage
12V / 24V / 110V / 220V
IP Rating
IP20, IP33, IP65, IP67, IP68
LED Type
3528 / 2835 SMD LED
CRI
Ra80
Viewing Angle
120 Degree
Warranty
2 Years
PCB Width
8mm to 20mm
Production Capacity
500,000 Meters/Month
Flexible LED Strip Light Banner
Product Highlights
UL/CE Approved Constant Current LED Strip
  • High-quality Epistar chip for superior performance
  • Flexible LED strip dividable every 3 LEDs for custom sizing
  • Equipped with 3M self-adhesive backing for easy installation
  • Low power consumption with high brightness output
  • Low profile design ideal for installation in narrow spaces
  • CE & RoHS compliant for safety and environmental standards

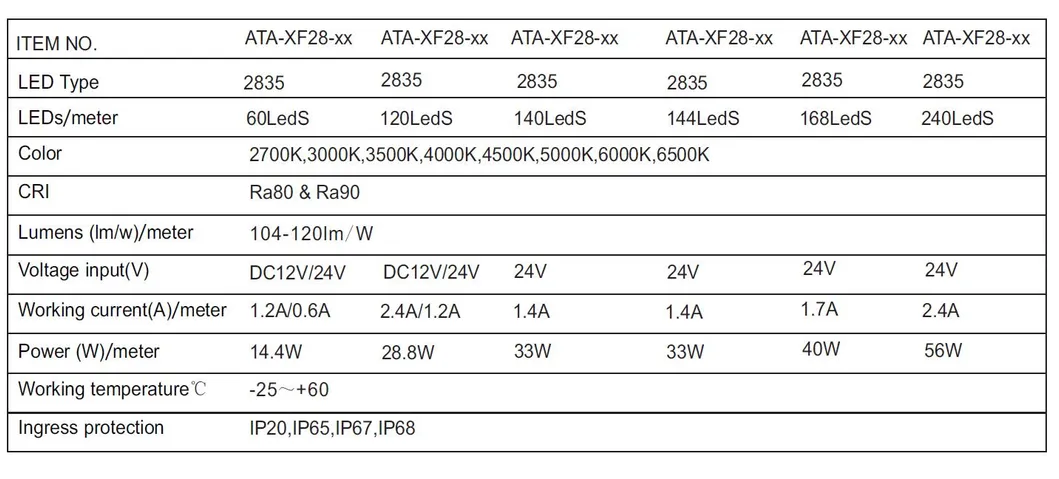

LED Strip Advantages
Technical Parameters
Light Source
2835, 3528, 5050, 5730, 335, 3014 SMD
PCB Color
White
LED Quantity/m
30 to 240 LEDs
Waterproof Method
Epoxy, Silicone Pipe, Full Silicone Gel
Working Temp
-20°C to +60°C
Packing
5m/roll, 1roll/bag
⚠ Safety & Installation Guide

1. The SMD light ribbon and components must not be mechanically stressed during assembly.

2. Installation must comply with all electrical and safety standards; only qualified personnel should perform setup.

3. Observe correct electrical polarity; incorrect wiring may destroy the ribbon.

4. Parallel connection is highly recommended. Avoid serial connections to prevent hazardous overload.

5. Ensure the power supply matches the total load requirements.

6. Provide insulation when mounting on metallic or conductive surfaces.

Wide Applications
  • Cabinet, furniture, and architectural lighting
  • Path, contour marking, and emergency signs
  • Edge-lighting for diffused glass or transparent materials
  • Decorative lighting for villas, restaurants, and hotels
  • General household and street task lighting

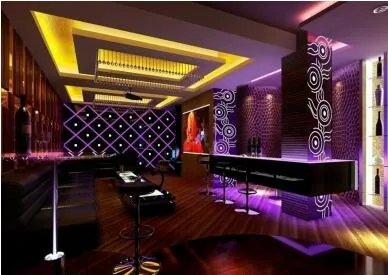

Application 1
Application 2
Production & Packaging

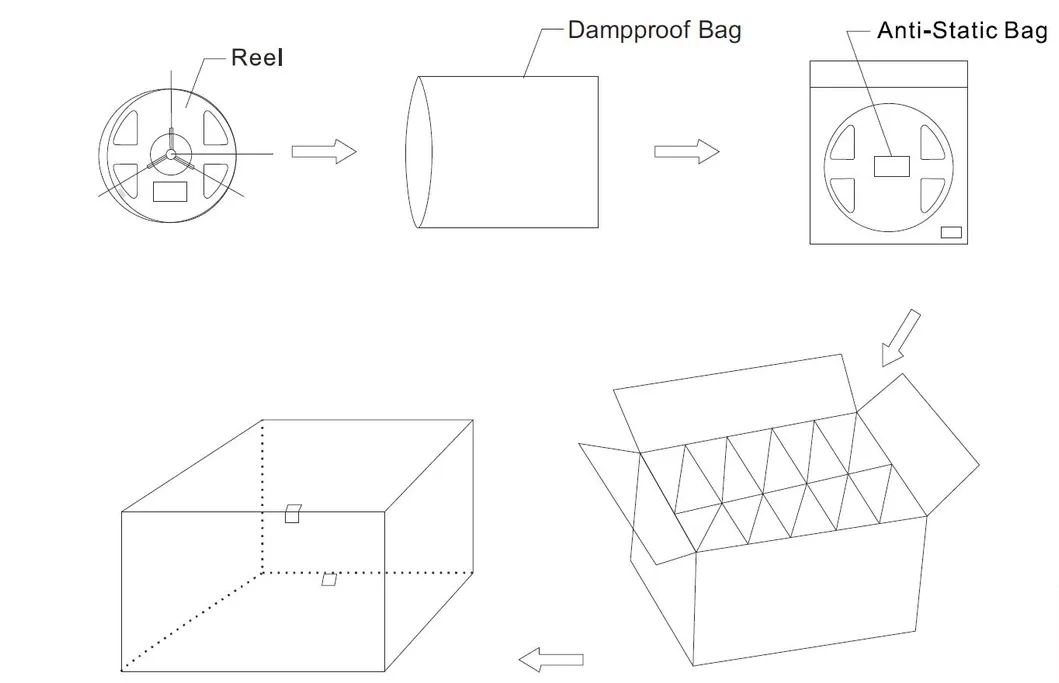

Packaging Details

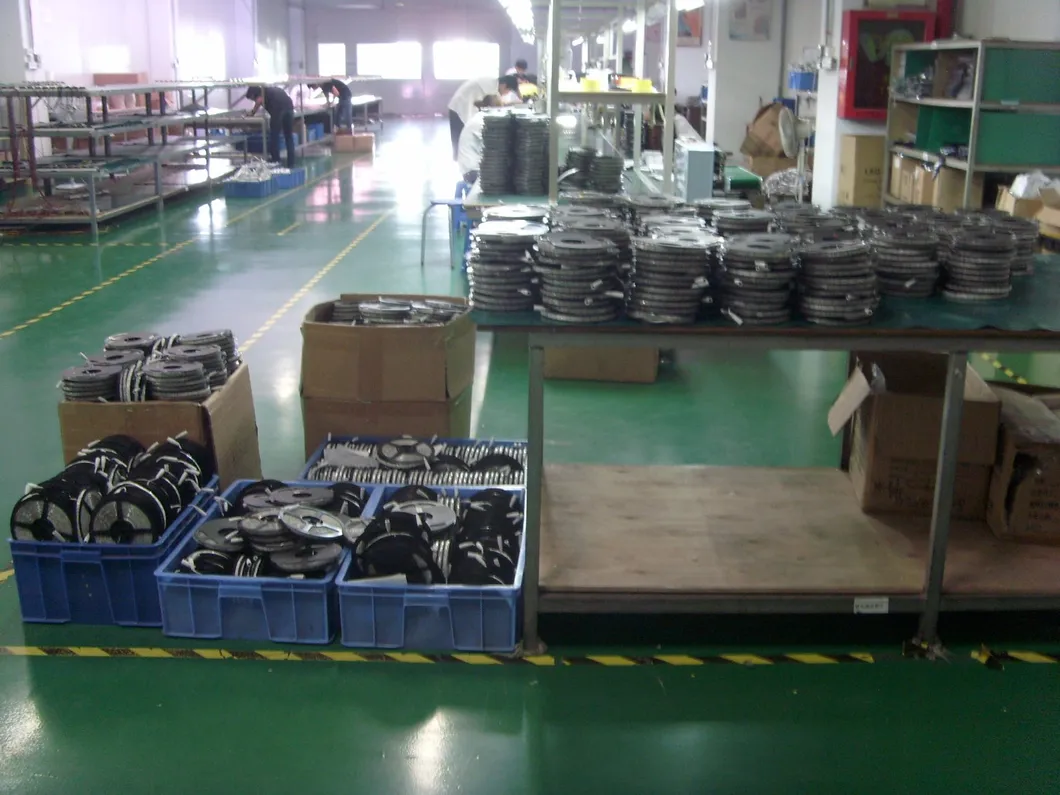

Production Line
Frequently Asked Questions
What is the standard warranty for these LED strips?
We provide a 2-year warranty for our SMD LED strip lights, ensuring reliable long-term performance.
Can the LED strip be cut to specific lengths?
Yes, the LED strip is designed to be divided every 3 LEDs, allowing you to customize the length for your specific installation needs.
What waterproof ratings are available?
We offer multiple protection levels, including IP20/IP33 (non-waterproof), IP65 (epoxy), IP67 (silicone tube), and IP68 (full silicone gel) for underwater use.
Is the strip easy to install on curved surfaces?
Absolutely. The flexible PCB and 3M self-adhesive backing make it ideal for rooms, furniture, and architectural contour marking.
What voltages do these strips support?
These strips are available in DC12V and DC24V for low voltage safety, as well as AC110V and AC220V versions for direct main power connection.
Are these products certified?
Yes, our LED strip lights are CE and RoHS compliant, and certain models are UL approved.
