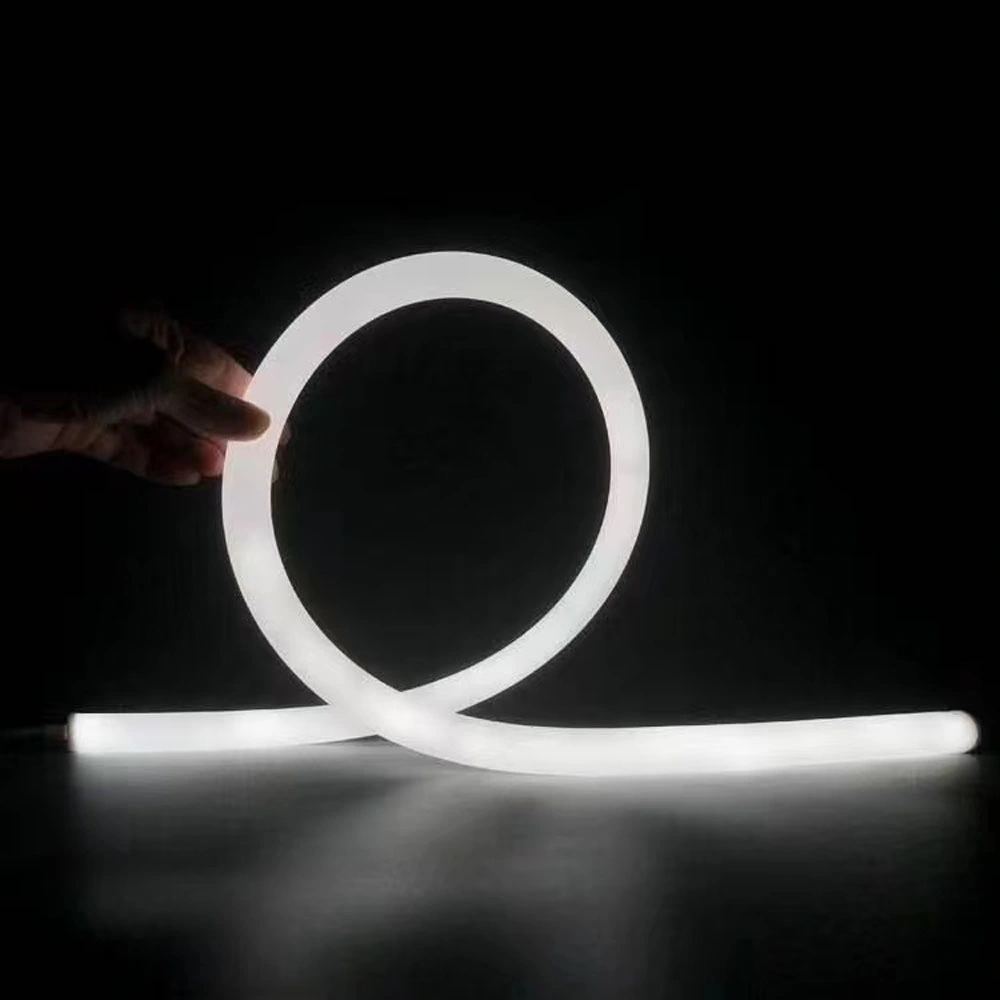

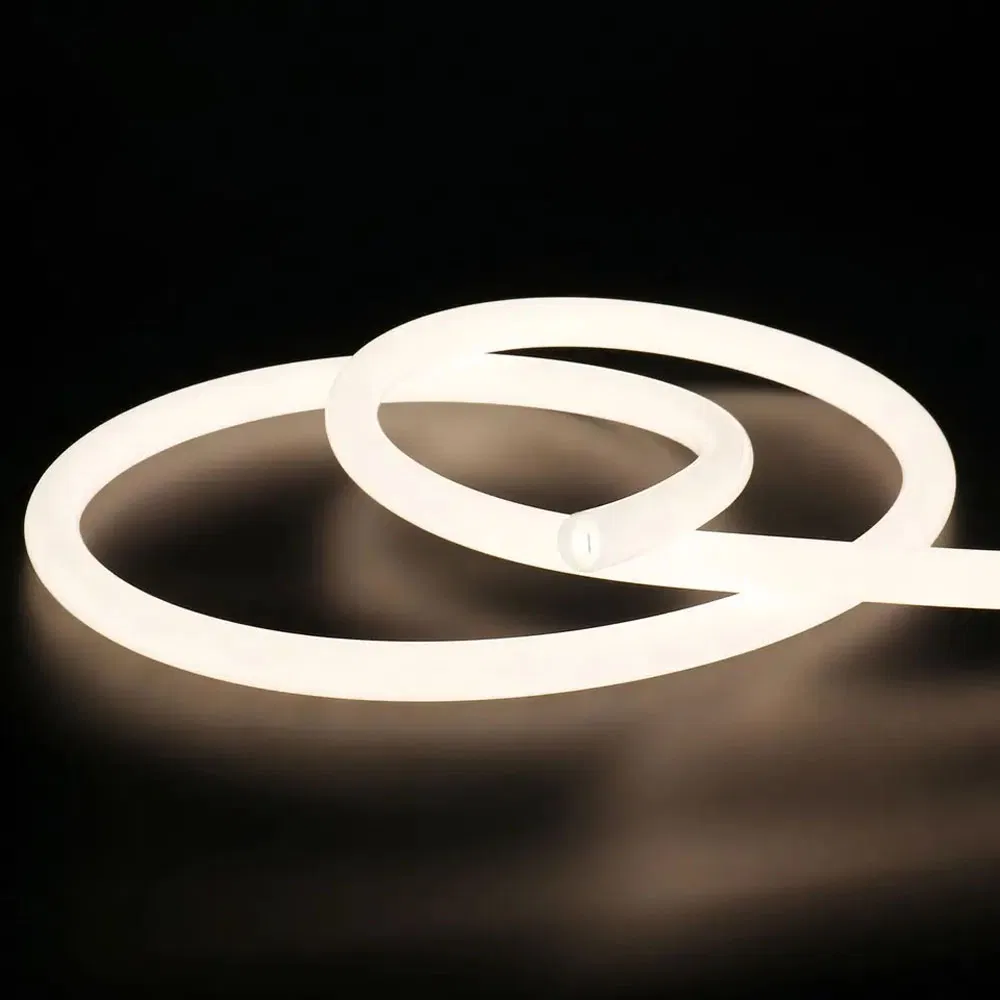

360 LED Flexible Neon Strip 22/25/30/40mm Neon Strip Flexible Neon Tubes 24V/12V/5V DC 360 Degree Emitting Silicone Round LED Neon Strip Light

Basic Specifications

Model NO.ATA-NS22D08240

Emitting ColorWhite

VoltageDC24V 12V 5V

IP RatingIP67

PCB Width8mm, 10mm, 11.5-20mm

LED Quantity240 LEDs/Meter

Viewing Angle360 Degree

Warranty2 Years

CRIRa90

Production Capacity500,000 Meters/Month

Technical Parameters

💡 LED Source: 2835, 5050 SMD LED
📐 Viewing Angle: 360 Degrees Full Emitting
⚡ Working Voltage: DC12V / DC24V
🎨 Colors: White, Warm White, Natural White, Red, Green, Blue, Yellow, RGB
🛡️ Waterproof Rate: IP65, IP67, IP68 (Surface Epoxy/Silicone Pipe)
🌡️ Operating Temp: -20°C ~ +60°C

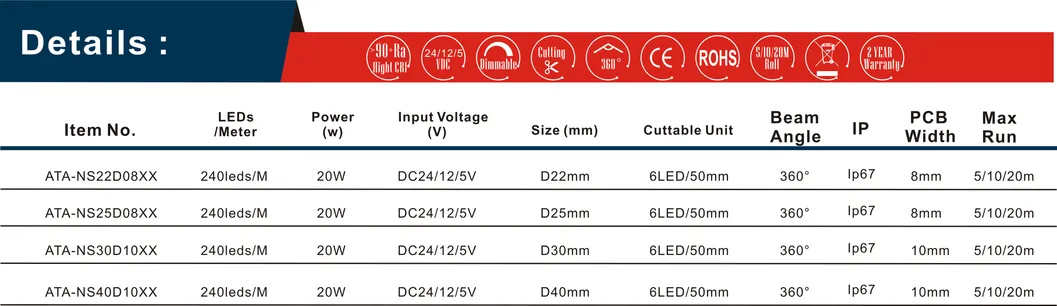

SMD 2835 LED Qty/M	Max W/M	Input Voltage	CRI	FPCB	Size (mm)	Colour	Item No.
240	20W	DC24V	≥90	8mm	D22	2700K-6500K	ATA-NS22D08240XX
240	20W	DC24V	≥90	8mm	D25	2700K-6500K	ATA-NS25D08240XX
240	20W	DC24V	≥90	10mm	D30	2700K-6500K	ATA-NS30D10240XX

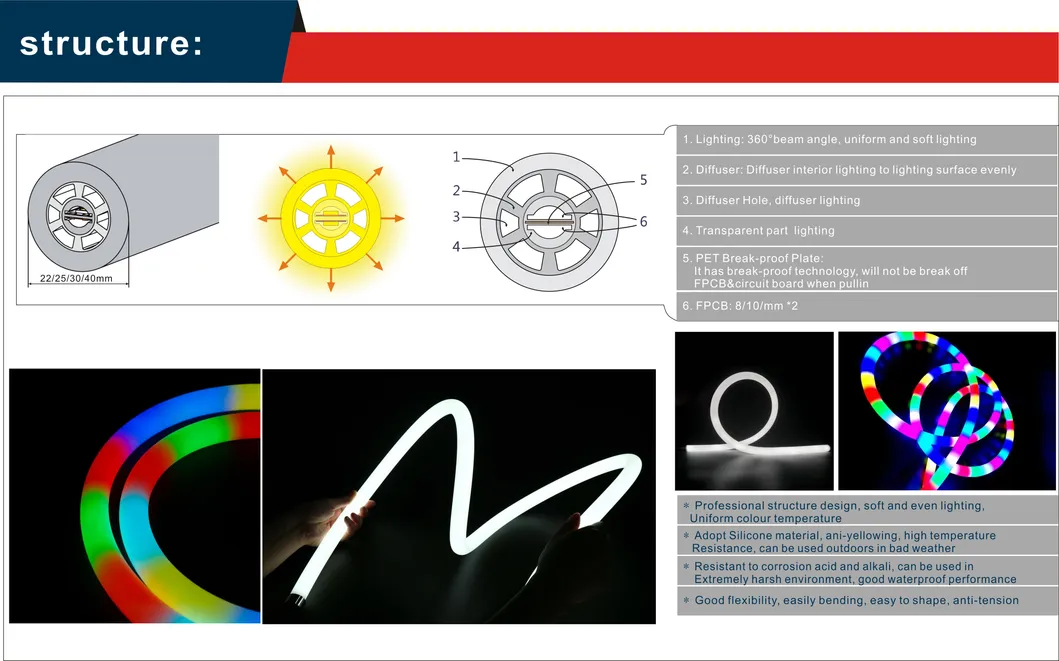

Product Structure & Features

✅ 360° Beam Angle: Uniform and soft lighting with no dark spots.
✅ Premium Silicone: Anti-yellowing, high temperature resistance, and weather-proof.
✅ PET Break-proof Plate: Special technology prevents FPCB damage when pulling.
✅ High Flexibility: Easily bended and shaped for any architectural contour.
✅ Extreme Durability: Resistant to corrosion, acids, and alkalis.

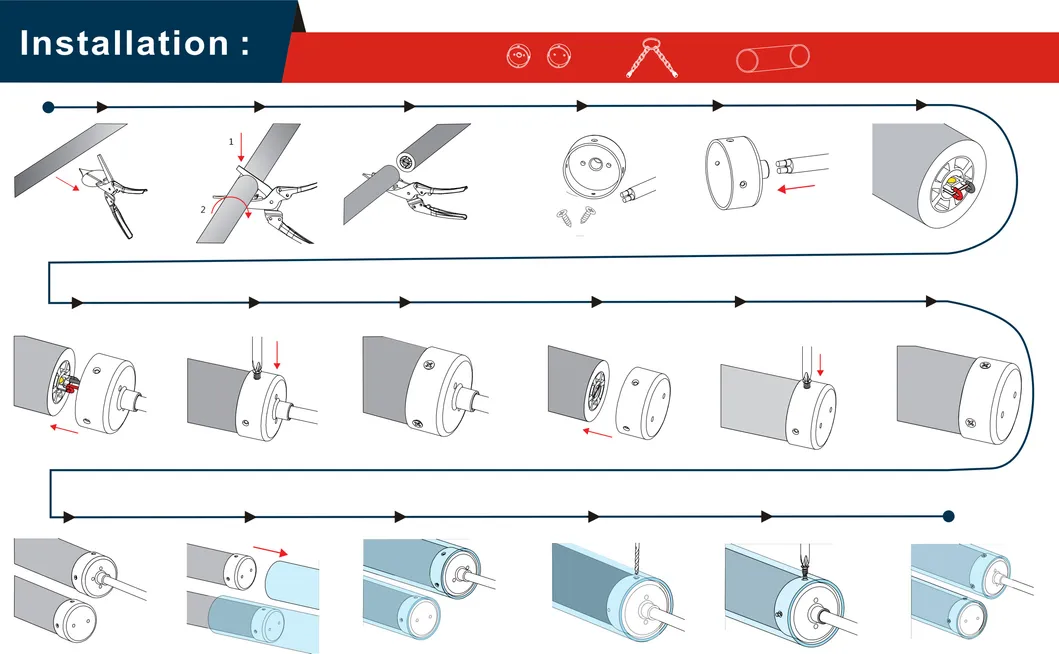

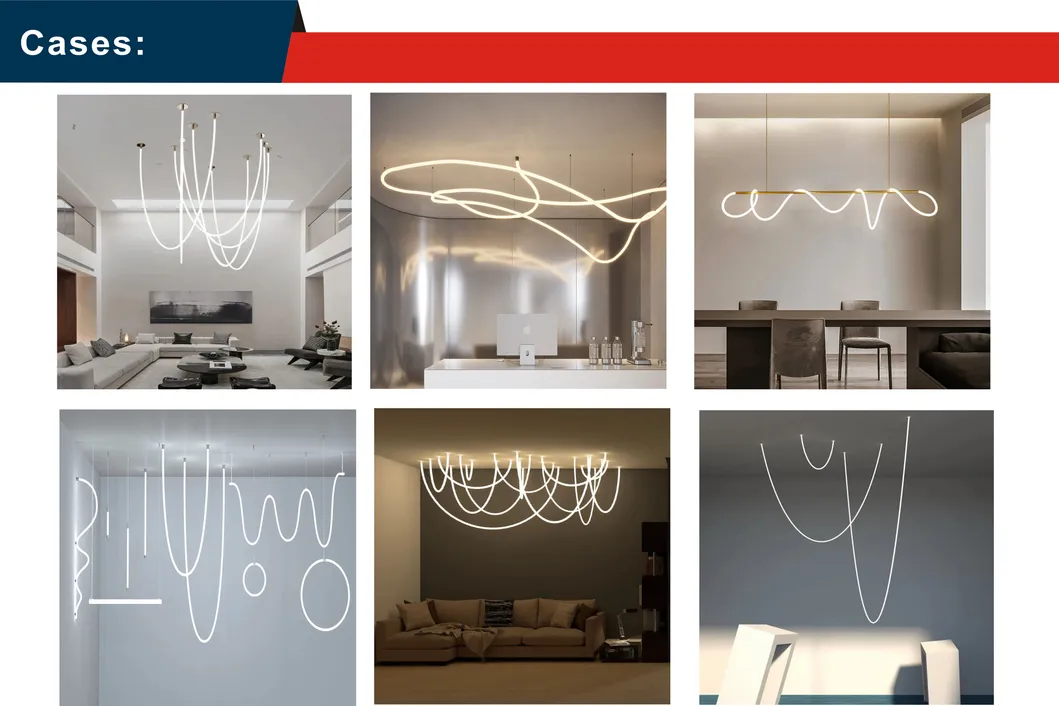

Installation & Application

Specifically designed for room decoration, architectural outlines, and commercial lighting. Low power consumption combined with high brightness output.

🛠️ Path & Building contour decorative lighting
🛠️ Advertisement signs and large scale backlights
🛠️ Bridge, villa, restaurant, and hotel edge lighting
🛠️ Car and motorcycle decorative lighting

Safety Guidelines

1. Ensure power supplies comply with electrical safety standards.

2. Observe correct electrical polarity to avoid damaging the ribbon.

3. Parallel connection is highly recommended for safe operation.

4. Ensure the power supply has adequate capacity for the total load.

5. Follow standard ESD precautions during installation.

Frequently Asked Questions

❓ Can this neon strip be used for outdoor projects?

Yes, with IP65, IP67, and IP68 ratings available, these silicone neon strips are designed to withstand harsh weather conditions and are resistant to UV and yellowing.

❓ What makes the 360-degree emitting version different?

Unlike standard flat LED strips, the 360-degree round design provides uniform light distribution in all directions, making it perfect for hanging decorations and tubular light designs.

❓ Is the neon strip cuttable?

Yes, for the 24V version, the strip can be cut every 50mm (6 LEDs) allowing you to customize the length to fit your specific installation needs.

❓ What is the warranty period for this product?

We provide a 2-year warranty for our LED flexible neon strips, ensuring high reliability and performance for your lighting projects.

❓ What materials are used for the diffuser?

The strip uses high-quality silicone material which offers excellent flexibility, high-temperature resistance, and superior anti-corrosion properties compared to PVC.

❓ Does it require professional installation?

While installation is designed to be easy, we recommend it be performed by a qualified professional to ensure compliance with electrical safety standards.
